Bracket U2

Name: Bracket U2
Brand: EMERTRONIC
Price: 90.00 EUR
Availability: InStock

The Symbol : Emertronic-U2

90.00

opak

Contact: biuro@fedlight.pl

Shipping within : 3 days

U2 bracket for a combination lamp. The height of the bracket is 40mm.
What does that mean?
From the roof surface to the beginning of the combination lamp flat bar we will get a height of 40mm.
This is an ideal solution for vehicles with a larger roof curvature.

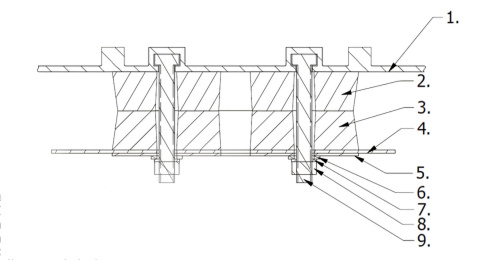

1.Podstawa aluminiowa lampy zespolonej REMED

2.Podkładka gumowa H=20mm

3.Podkładka gumowa H=20mm

4.Dach pojazdu

5.Podkładka prostokątna

6.Podkładka 8,4

7.Podkładka spręż. 8,2

8.Nakrętka M8

9.Śruba M8x60

Kompatybilny z lampami zespolonymi:

EMERTRONIC: Remedy

ELEKTRA: LZ, LZP, LZN (wymaga krótszych główek śrób)

PW GAMET: W, N oraz ORION

ELFIR: EP

Installing a combination lamp using the U-2 bracket.
Remember, if you do not have advanced knowledge of this type of installation, leave it to authorized vehicle services
or our company. Before starting work, dismantle the headliner in the vehicle being fitted. This is necessary.
Start mounting the combination lamp using the U-2 bracket by correctly arranging the brackets on the vehicle roof.
You must position the combination lamp so that the vertical axis of the lamp is perpendicular to the road surface on
a flat surface. The location of the brackets should be at the height of the internal roof reinforcements.
This will ensure the best durability and rigidity of the installed lamp. Drill 2 holes on the left and 2 holes
on the right side of the roof for the U2 bracket. Screw the combination lamp using M8 screws and then,
according to the instructions, apply rubber washers, metal flat washers, locking washers and the screw
one after another. Remember to properly secure the drilled holes. Anti-corrosion protection and sealing
with appropriate silicones are very important. After proper installation,
the assembly kit should be inspected periodically according to the manufacturer's instructions.
